Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit
Honda S2000 DBW Pedal Conversion Kit

Honda S2000 DBW Pedal Conversion Kit

Regular price$259.99
/

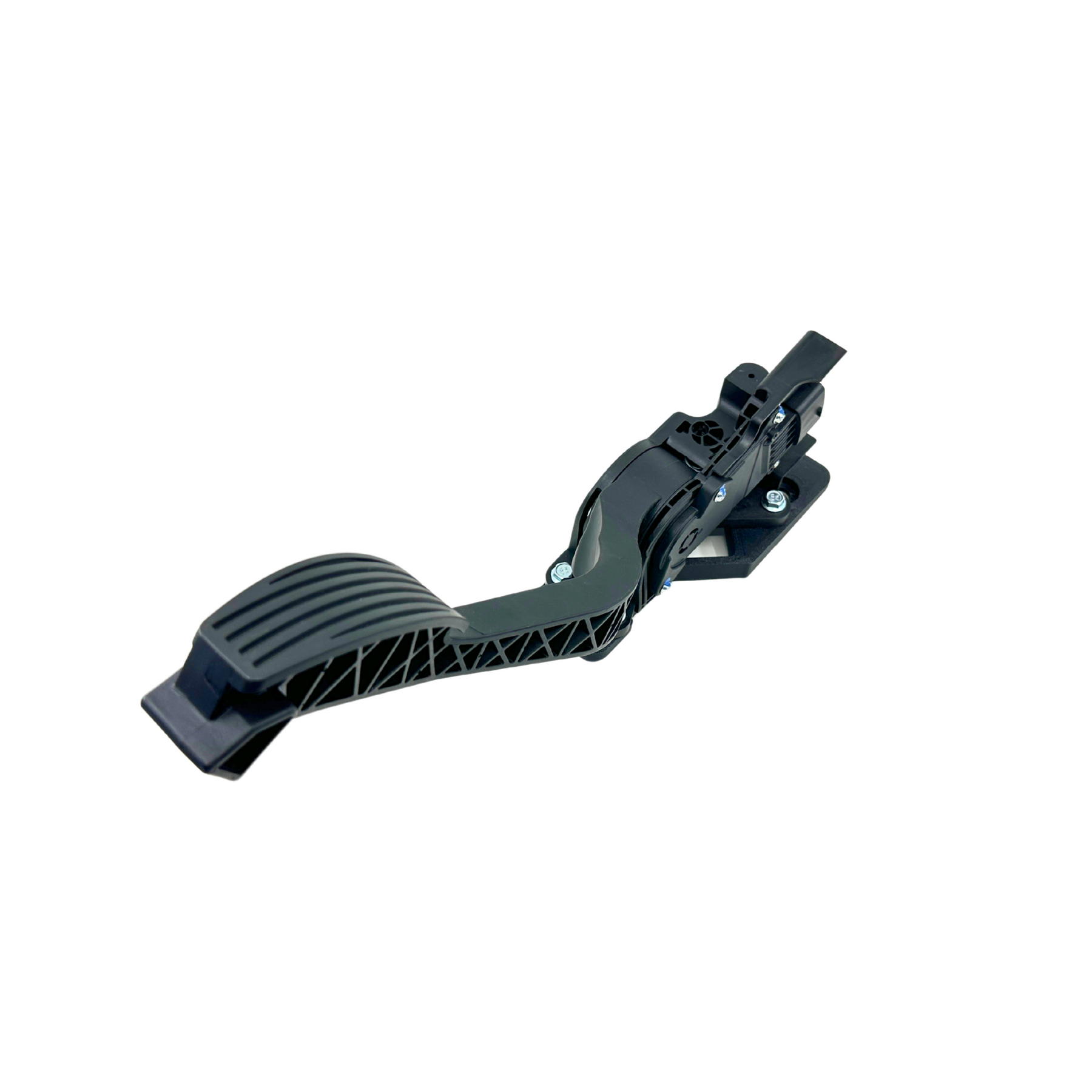

Include (modified) DBW Pedal w/ Connector
  • In stock, ready to ship
  • Backordered, shipping soon
  • Free USA shipping on orders over $100! (Excludes AK & HI)

Manufacturer

PRODUCT INFO

Looking to convert your Honda S2000 throttle pedal to drive-by-wire?  We've got you covered!

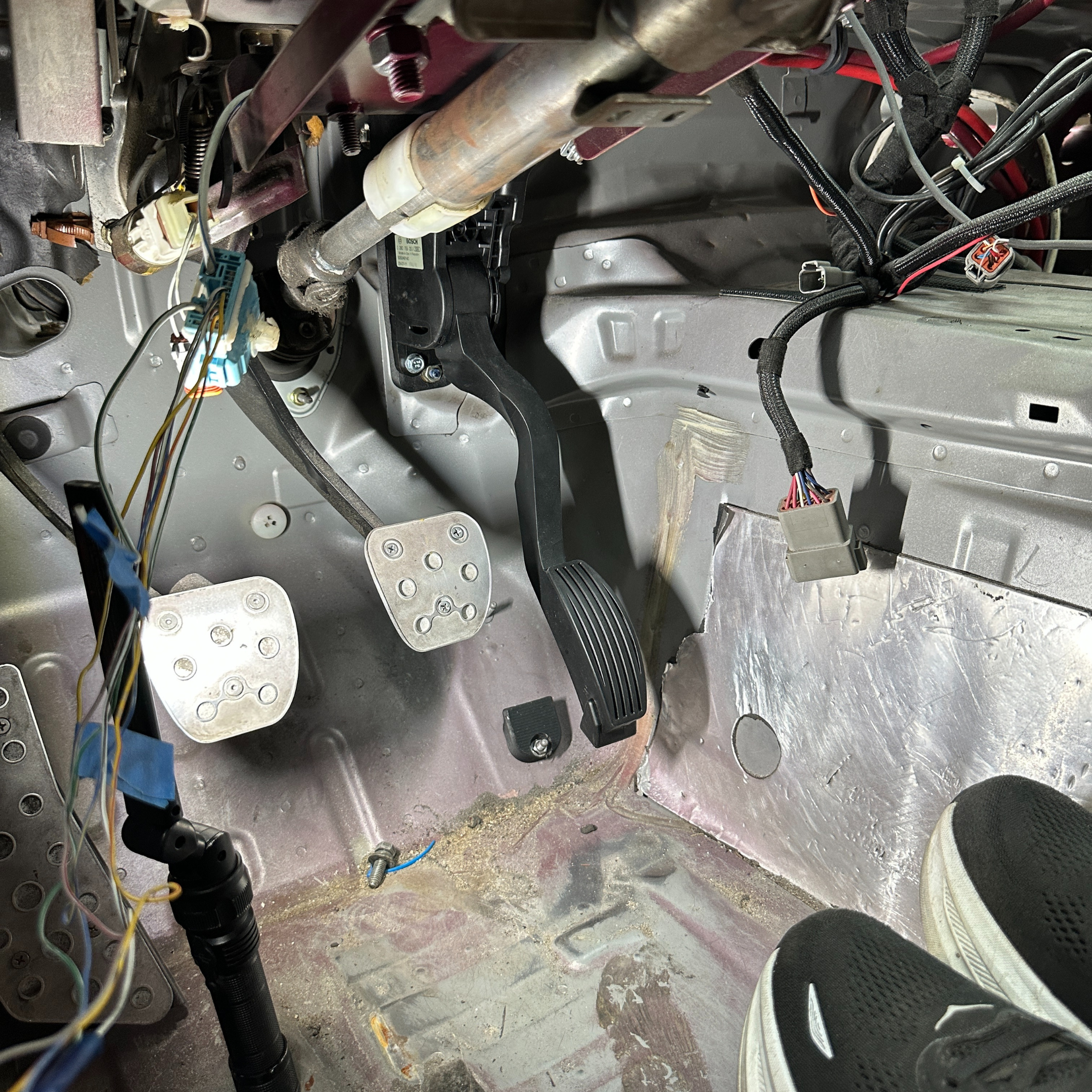

We have created an adapter plate that allows you to remove your OEM throttle pedal and cable and install a Haltech/Bosch Motorsports DBW Accelerator pedal in its place!

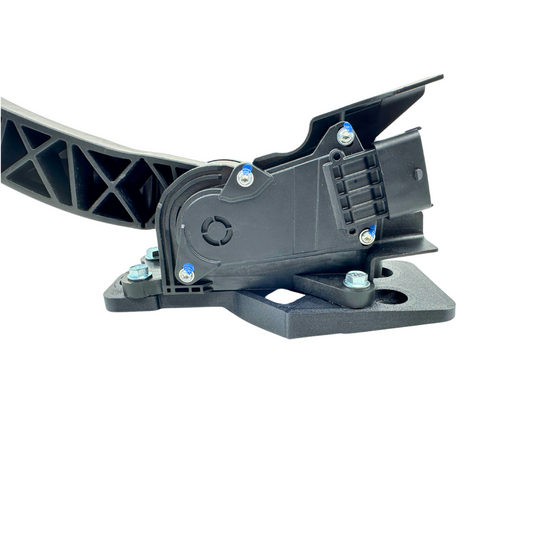

Here is the adapter plate that we created:

The plate attaches to the firewall using two M8x1.25 flange nuts and the DBW pedal attaches to the plate using four M6x1.0 bolts.

We recommend purchasing the accelerator pedal from us because we will modify the pedal and remove the stanchions from the pedal body allowing the pedal to sit closer to the original OEM throttle position.

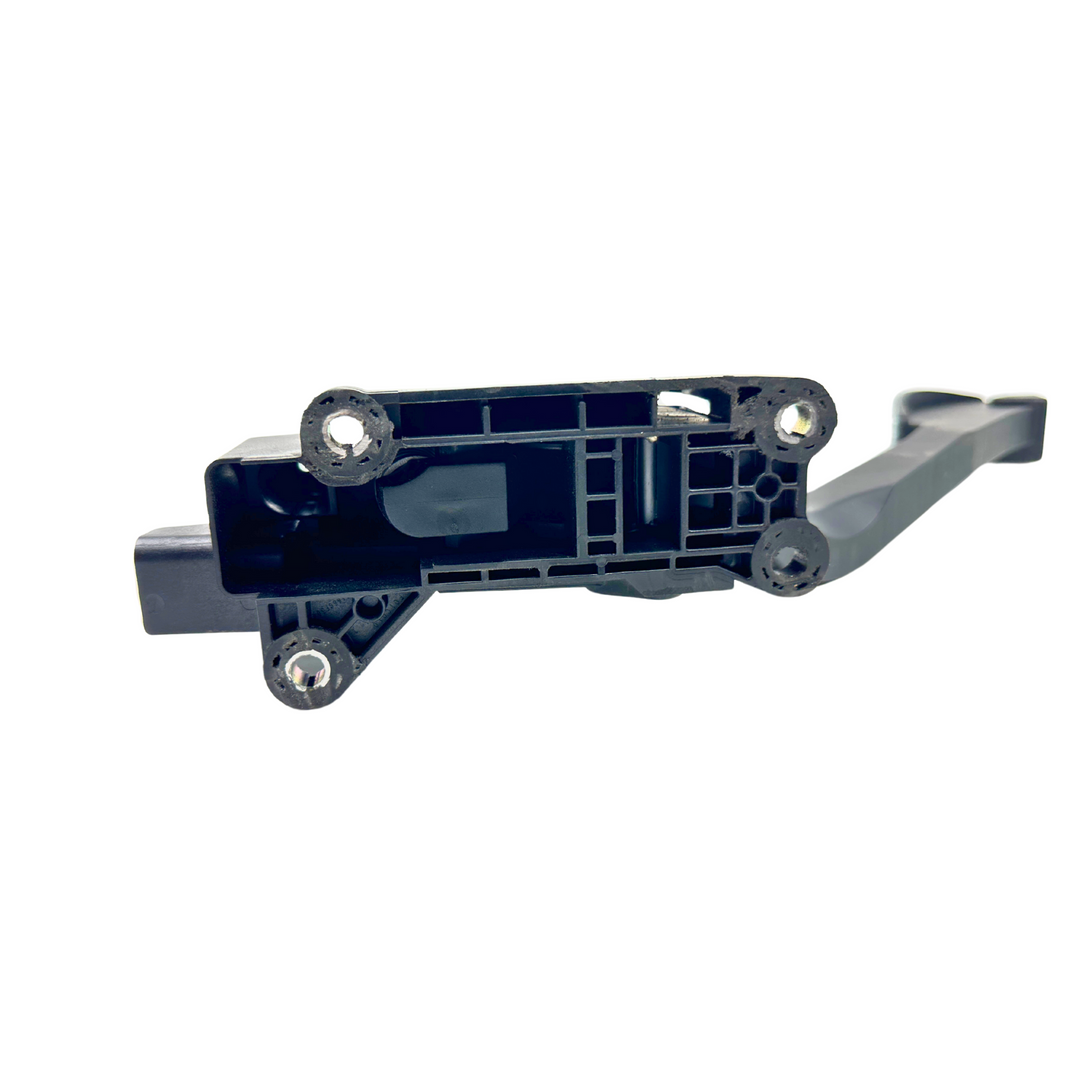

Here is what the pedal looks like with the stanchions removed:

* The DBW pedal will come with the connector kit (needs to be pinned/wired).

This throttle pedal adapter plate is 3D printed using a carbon fiber infused plastic (PETG-CF) that is optimized for strength, vibration resistance, and thermal resistance.

Weight: 32 ozs
Length: 9 in Width: 8 in Height: 17 in

Comes with:

  • one throttle pedal adapter plate
  • (if selected) Haltech/Bosch Motorsport Accelerator Pedal with plug connector set
  • four M6x1.0-16mm bolts and four M6x1.0-25mm bolts: 16mm bolts are used if the throttle pedal stanchions have been cut off and 25mm bolts are used if they are not
